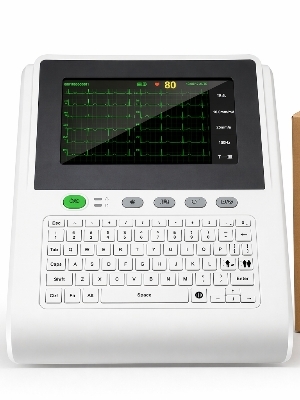

12 channal Ecg Machine

Get a Price/Quote

MOQ : 1 Unit

12 channal Ecg Machine Specification

Type
Digital 12-channel ECG Machine

Material
Durable ABS plastic housing

Condition
New

Technology
Microprocessor-based, thermal printing

Portable
Yes

Channels
12

Resolution
Digital, 12-bit ADC, 1V resolution

Sample Rate
1000 samples/sec/channel

Download Interface
USB, SD card

Internal Memory
Built-in storage for 200+ ECG records

Recording Time
Continuous/Intermittent

Recording Mode
Manual/Automatic/Rhythm

Record Format
PDF/DICOM/Printout

Gain
Adjustable: 2.5, 5, 10, 20 mm/mV

Lead Acquisition
Simultaneous 12-lead acquisition

Frequency
Recording frequency 150 Hz - 250 Hz

Operating Mode
Manual, Auto, Rhythm

Paper Type
Thermal paper roll, standard 80mm width

Speed
Recording speeds: 25, 50 mm/s

Inter-Channel Interference
<20 V

Sensitivity
10 mm/mV

Filters
AC, Muscle, Baseline

Screen
5 inch Color LCD Display

Real-Time Operation
Yes, real-time ECG waveform display

Noise Level
Low noise, improved signal to noise ratio

Accuracy
High diagnostic accuracy, clinical grade

Power Source
AC 110/220V; Built-in rechargeable battery

Power Consumption
<25W

Voltage
100-240V AC, 50/60 Hz

Battery Life
Rechargeable battery, up to 3-4 hours continuous use

Dimension (L*W*H)
Approx. 315mm x 215mm x 85mm

Color
White with black screen area

Weight
Approx. 2.7 kg

Use
Medical diagnostic ECG recording

Storage Capacity
200+ patient records in internal memory

Lead-off Detection
Yes, real-time with notification

Patient Data Entry
Manual via keypad or USB import

Auto-Analysis
Automatic measurement & interpretation

Safety Standard
IEC 60601-1 compliant

Data Protection
Password protected access

Report Output
Direct print, USB export, PC connectivity

Printer
High resolution thermal printer integrated

Environmental Conditions
Operating Temp: 5C - 40C, Humidity: 80%

Display Mode
Multiple waveforms, 12-lead review

Alarm System
Audible and visual alarms for lead-off and abnormal heart rhythm

PC Connectivity
Support ECG software for data management

Operation Keypad
Alpha-numeric keypad with dedicated function keys

Battery Type
Built-in rechargeable Li-ion battery

Language Support
Multilingual interface

Defibrillator Protection
Yes

Optional Accessories
Patient cable, limb and chest electrodes, paper rolls

12 channal Ecg Machine About

Experience a grand advancement in cardiac diagnostics with the Digital 12-channel ECG Machine. This stellar device has garnered favorable reviews for its clinical-grade accuracy, rapid auto-analysis, and robust defibrillator protection. Its high-resolution thermal printer, multilingual interface, and direct-to-print or USB export make record management seamless. Utilise our offer to secure a valuable bargain on an IEC-compliant, portable ECG machine featuring real-time operation, low noise, and password-protected patient data. Ideal for healthcare professionals seeking superior performance and high patient throughput, this is what excellence looks like.

Commercial Usages, Versatile Surfaces, and Key Features

The 12-channel ECG Machine is extensively used in hospitals, clinics, diagnostic centers, and field camps for cardiac assessment across diverse patient populations. Engineered for commercial-grade resilience, it can be utilised on any flat clinical application surface. Key features include simultaneous 12-lead acquisition, automatic measurement, robust alarms, a 5-inch LCD display, and multilingual support-ensuring versatile, reliable, and swift cardiac screenings anywhere they're needed.

Sample Policy, Availability, and FOB Port Details

We offer sample units for interested parties to evaluate product functionality and compatibility before bulk expenditure. Sample goods are stock ready for prompt shipment, reducing waiting time for evaluation. All shipped goods depart from our designated FOB port, ensuring secure handling and timely delivery. This approach streamlines your procurement process, allowing seamless integration of our ECG solution into your medical equipment portfolio with minimal upfront risks.

FAQ's of 12 channal Ecg Machine:

Q: How does the 12-channel ECG Machine ensure data security for patient records?

A: The device features password-protected access to its internal memory, securing more than 200 patient records and adhering to stringent data protection protocols.

Q: What is the process of exporting ECG reports from the machine?

A: ECG reports can be exported directly via printout, USB, or SD card, and are available in PDF or DICOM formats for seamless integration with external systems.

Q: Where are the typical applications for using this ECG machine?

A: This ECG machine is commonly deployed in hospitals, clinics, emergency rooms, cardiac care units, and even mobile medical units due to its portability and durable design.

Q: What kinds of alarms and notifications does the unit provide during operation?

A: The system includes both audible and visual alarms for lead-off situations and abnormal heart rhythms, promoting prompt intervention and patient safety.

Q: When should the ECG machine's rechargeable battery be recharged?

A: The built-in Li-ion battery provides 3-4 hours of continuous operation and should be recharged after extended usage to maintain optimal performance.

Q: How can patient data be entered or managed on this ECG machine?

A: Patient information can be manually entered through the alpha-numeric keypad or imported using a USB drive, with full support for external ECG software for advanced data management.
